Hebei Aohe Teaching Equipment is a professional manufacturer of board tennis courts in China. The company's products are exported to dozens of countries overseas, and the quality of the products is trustworthy. The company always adheres to the principle of quality first, service first, and reputation first. The company's current production of board tennis courts, panoramic board tennis courts, floating board tennis courts, and squash courts has received praise from domestic and foreign companies,

technical parameter

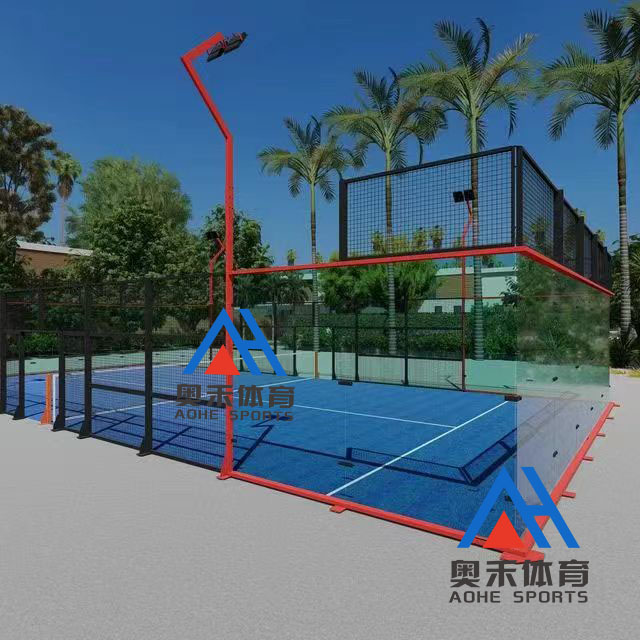

1. Site size: 20 meters long x 10 meters wide

2. Tempered glass type: Special explosion-proof tempered glass, size: 2m * 3m * 18 pieces, thickness: 12 mm

Performance: Impact resistance, bag impact performance, and fragment state comply with GB15763.2-2005 "Safety Glass for Building Purposes - Part 2: Tempered Glass", and have passed professional CCC certification and export CE certification

3. Surface layer:

Artificial short grass (curly grass): standard size roll 4000 mm/2000 mm

Length: 20000 mm, height: 12 mm

Density: The lawn density is 63000 needles/square meter

Standard: In accordance with GB/T 20394-2006 "Artificial Grass for Sports" premium product

Color: Blue,

4. Column and fence:

The column is made of high-quality steel pipe, with a size of 100mm × 100 mm × 3mm

The crossbeam is made of high-quality steel pipes, with a steel pipe size of 50mm × 100mm × 3mm

The mesh diameter is 4mm, and the mesh size is 50mm × 50mm. The end of the mesh is equipped with protective measures to prevent scratches and hooks. The surface of all pipes is sprayed with electrostatic powder, making the surface smooth and delicate, durable, and beautiful

All indicators meet the standards of GB15065-94 and IE60502, with a water absorption rate of 0%

5. Lighting system:

8 sets of LED lamps, each with a power of 200 W. IP65 waterproof grade

The lamppost is embedded inside the fence,

6. Accessories:

All accessories and screws are made of 304 stainless steel, which will not rust for life,

Durable and not deformed, with beautiful craftsmanship and appearance

7. Material and process of columns and beams:

The columns and beams are made of high-quality steel pipes, and the electrostatic spraying process has good anti-corrosion and rust prevention effects

In suburban environments, standard high-quality steel pipes can be maintained for more than 5 years without repair
