Hebei Aohe Teaching Co., Ltd. is a professional supplier of board tennis courts, specializing in the production of various board tennis courts:

Classic box tennis court, panoramic board tennis court, floating board tennis court, mobile board tennis court, etc

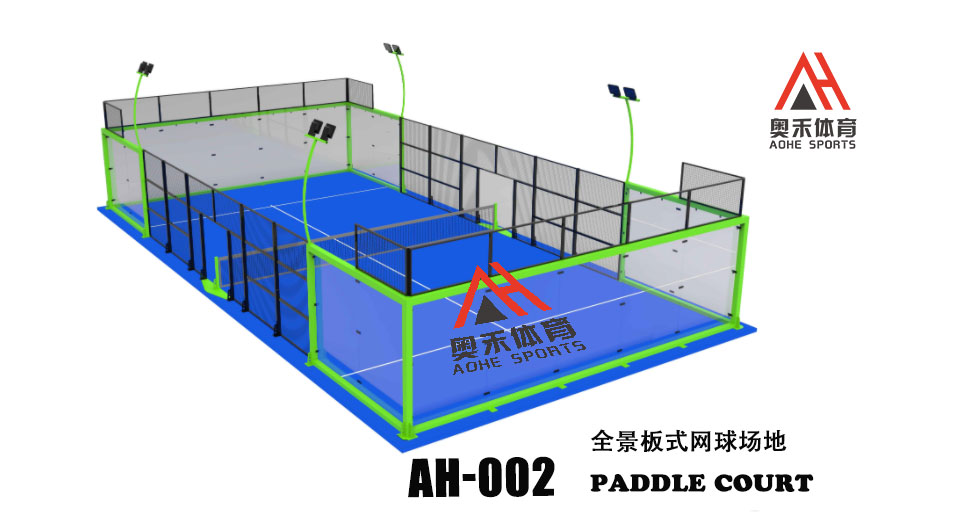

The company has complete equipment and a short production cycle, making it an early manufacturer of exported board tennis courts. Now, the company recommends a best-selling board tennis court - panoramic board tennis court parameters!

Technical parameters of board tennis court

1. Site size: 20 meters long x 10 meters wide

2. Tempered glass type: Special explosion-proof tempered glass, size: 2m * 3m * 18 pieces, thickness: 12 mm

Performance: Impact resistance, bag impact performance, and fragment state comply with GB15763.2-2005 "Safety Glass for Building Purposes - Part 2: Tempered Glass", and have passed professional CCC certification and export CE certification

3. Surface layer:

Artificial short grass (curly grass): standard size roll 4000 mm/2000 mm

Length: 20000 mm, height: 12 mm

Density: The lawn density is 52500 needles/square meter

Standard: In accordance with GB/T 20394-2006 "Artificial Grass for Sports" premium product

Color: Blue, green (customizable)

4. Column and fence:

The column is made of high-quality steel pipe, with a size of 80 mm × 80 mm × 3mm

The crossbeam is made of high-quality steel pipes, with a size of 80mm × 80mm × 3mm

The mesh diameter is 4mm, and the mesh size is 50mm × 50mm. The end of the mesh is equipped with protective measures to prevent scratches and hooks. The surface of all pipes is sprayed with electrostatic powder, making the surface smooth and delicate, durable, and beautiful

All indicators meet the standards of GB15065-94 and IE60502, with a water absorption rate of 0%

5. Lighting system:

8 sets of LED lamps, each with a power of 200 W. IP65 waterproof grade

The lamp column is embedded inside the fence, with a height of 6000 mm and an illumination of 300 Lux

6. Accessories:

All accessories and screws are made of 304 stainless steel, which will not rust for life,
