1.Product description

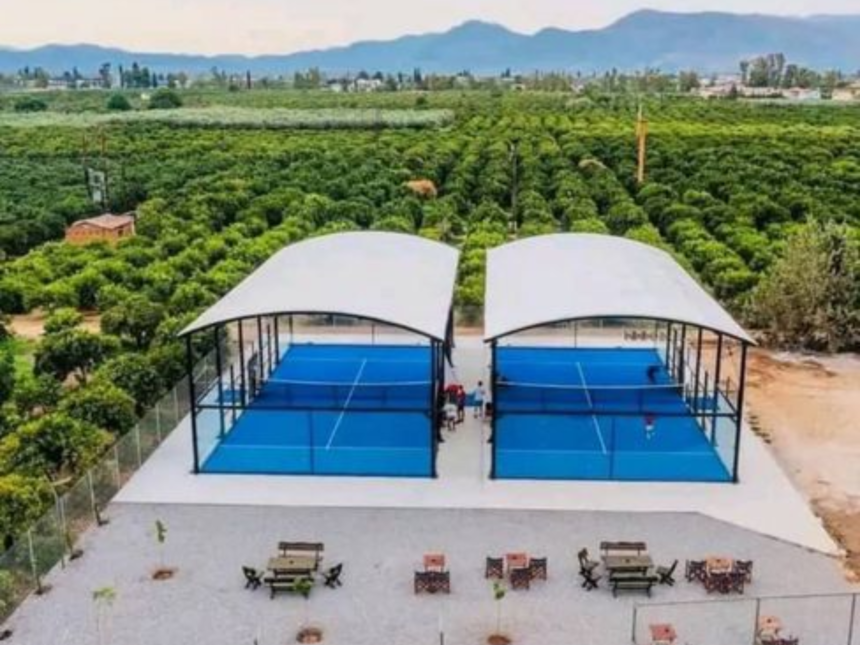

The internal specifications of the court are 20 meters in length and 10 meters in width. A nylon net is set up in the middle of the court to divide the left and right parts. There are glass walls all around, not only you can hit the ball on the ground, but also you can hit the ball on the wall.
2.Specification
NO . | ITEM | SPECIFICATION | QUANTITY |
MEMBRANE | Membrane material | pvdf1050g white architectural membrane material | 207.6 |
Film loss and auxiliary materials | pvdf1050g white architectural membrane material | 37 |
Film processing | Contains welding accessories | 244.6 |
Diaphragm platen | 25x2.5 galvanized battens | 61 |
| Drill tail wire membrane strip heat sealing waterproof | 3 |
FRAME | Tent main beam, secondary beam | 150x150x4 Q235B(6m/piece) | 10.5 |
80x80x3 Q235B(6m/piece) | 9.2 |
80x80x6 rectangular tube sealing plate Q235B | 50 |
80x60 link ear plate Q235B | 150 |
Accessories include head plate connecting plate stiffeners and bolts | 100 |
Steel rust removal | 1 |
| Coating and Packing | Fluorocarbon paint is sprayed with one coat of primer and two coats of topcoat | 1 |
Bubble film packaging | 1 |
1 | Column | Material:Q235 steel
Color:black or customized
Size：150mm*150mm*3mm
Length：3m | 4pcs |
2 | Lamp-post | Color: custom color
Height: 6000mm
Size: 150 * 150 * 6000mm | 4pcs |
3 | 加高拉网立柱 | Material:Q235 steel
Color: Black
Size：100mm*150mm*3mm
Length：3m/2m | 4pcs |
4 | Column+gate column | Material:Q235 steel
Color: Black
Size：100mm*150mm*3mm
Length：3m/2m | 4 pcs |
5 | net post | Color: Green
Height：1000mm
Column size：100mm*100mm*3mm | 2pcs |
6 | Upper fence | Material:Q235 steel
Color:Black
Size：1m*2m
Mesh diameter:4mm
Seine frame: 30mm*50mm*2mm | 14pcs |
7 | low fence | Material:Q235 steel
Color:Black Size：1m*2m
Mesh diameter:4mm
Seine frame: 30mm*50mm*2mm | 32pcs |
8 | Glass | Color: transparent
Height：1995mm*2995mm
Thickness：12mm | 18pcs |
9 | 10m side upper and lower beams | Material: Q235 steel
Color: Black or custom
Upper cross bar: 50*150*5000mm*4
Lower cross bar: 50*100*5000mm*4 | 8 pcs |
10 | Side upper and lower beams | Material: Q235 steel
Color: Green (or customized)
Size: 150*150*3mm
Upper bar: 150*150*5000mm*4
lower bar: 150*150*5000mm*4
Length: 4m | 8 pcs |
11 | Net | Lenght: 10m
Height: 1000cm
Material: PP
Thickness: 3mm
Mesh: 45mm Color: black | 1sets |
12 | Light | Color: Black
Power: 200W LED | 8 lamp |
13 | Lawn | Color：blue
Size：200 square meters
Thickness：12mm | 1pcs |
Pipeline: our steel pipe from one of the top 500 companies in China: Youfa Steel Pipe
The thickne ss of hot-dip galvanized pipe before painting is 3mm
Glass : length:2995mm, width:1995mm, thickness:12mm
Turf : Height: 12mm Weave Length: 3/16 inch, Needle count: 300 stitches/meter
Density: 63000 clusters/square meter, Fiber : 9500 dtex, PU back adhesive
Light : 8 pieces 200w LED lights
Water proof:IP65
Luminous efficiency :>120LM/W
power factor:>0.95
Working Temperature:-12°C ~ +45°C
Test Equipment ：we have do many times. Don’t worry about not being able to install it at all, we will provide you with professional drawings and videos.
All the part of our padel court are the best quality. you can rest secured that, also we have the CE certificate.
